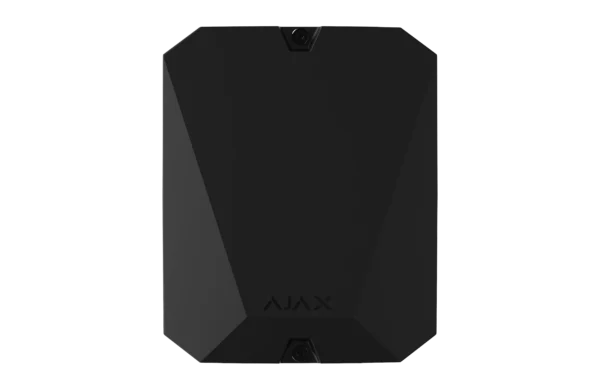

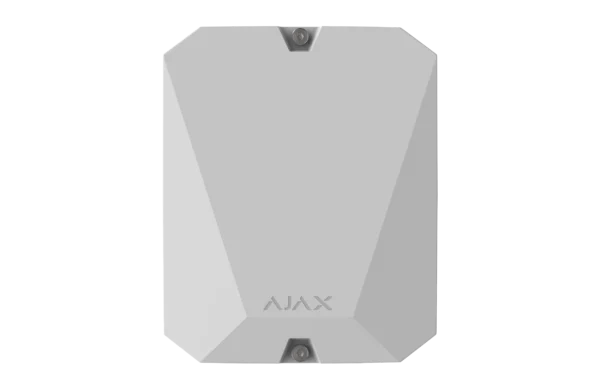

Ajax MultiTransmitter – Module for connecting wired alarm to Ajax

Ajax MultiTransmitter: Integrating Tradition with Wireless Innovation

The Ajax MultiTransmitter stands out as a singular innovation designed to bridge the gap between conventional security systems and the forefront of wireless technology. This device is adept at connecting wired security system components directly to the Ajax Hub central unit, thereby revitalizing old motion sensors, magnetic door/window sensors, and an array of other devices into a contemporary, effortlessly managed security system.

Equipped with numerous zones for the attachment of wired apparatus, the Ajax MultiTransmitter showcases unparalleled flexibility in both system configuration and expansion. It bolsters security with anti-tampering and anti-sabotage features, rendering it an unyielding guardian for either residential or commercial premises. A remarkable trait of the Ajax MultiTransmitter is its compatibility with diverse sensor types, empowering users to incorporate even the most specialized or unconventional devices into their security setup.

The Ajax application paves the way for remote system management, alarm notifications, and real-time monitoring of connected devices, enhancing convenience and adaptability. This enables the modernization of outdated security systems through seamless integration with cutting-edge technology.

MultiTransmitter: A pivotal module for the fusion of wired alarms with Ajax, streamlining security management via the application.

Specifications:

• Manufacturer: Ajax Security Systems
• Compatibility: All Ajax hubs (Note: The Hub model excludes support for 2EOL and 3EOL connections, which are only available in other hub models with firmware version OS Malevich 2.13+)
• Compatible Repeaters: All
• Radio Communication Range: Up to 2000m
• Encrypted Communication: Yes
• Wired Device Connection: 18 wired zones
• Connection Types: NC, NO, EOL, 2EOL, 3EOL
• EOL Resistor Resistance: 1 kΩ to 7.5 kΩ in 100 Ω increments
• Cable Length: Up to 400m (with 0.22 mm² cross-section copper-clad aluminum core signal cable)
• Operating Modes: Pulse, bistable
• Event Types (9 per wired zone): Intrusion, Fire, Emergency Assistance, Panic Button, Gas, Tamper Alarm, Malfunction, Flood, Information
• Tamper Protection:
  • Two tampers: Alerts for MultiTransmitter case opening attempts or detachment from the surface
  • Forgery Protection: Integration module authentication
  • Communication Loss Detection: Within 36 seconds
  • Instant Wired Connection Loss, Short Circuits, and Faults Detection
• Backup Power: 12 V⎓, up to 7 A·h capacity with a full charge cycle of up to 30 hours (battery not included)
• Power Supply: 110-240 V~ (for indoor use only)
• Device Power Supply: 10.5–15 V⎓, up to 1 A total maximum current consumption
• Dimensions: 192 × 238 × 100 mm
• Weight: 805 g
• Operating Temperature: −10 °C to +40 °C
• Humidity Tolerance: Up to 75%
• Protection Class: IP40

Package Contents:

• MultiTransmitter board
• Case
• Power cable
• 12 V⎓ battery connection cable
• Mounting kit
• Quick start guide
