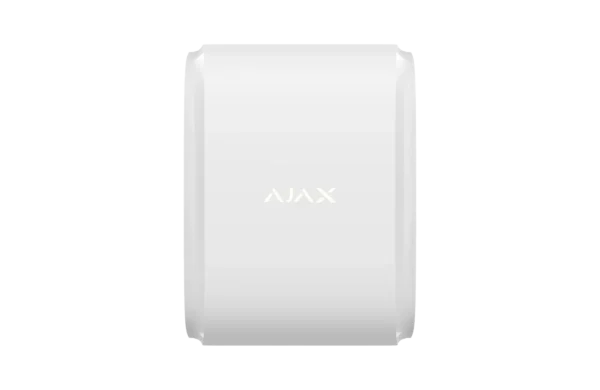

Ajax DualCurtain Outdoor – Outdoor Sensor

Ajax DualCurtain Outdoor – outdoor motion sensor for external use

Product Overview: The DualCurtain Outdoor is an advanced solution in security systems that provides reliable perimeter protection for your home or business. This unique wireless motion detector is specifically designed for outdoor use and is equipped with multiple features to ensure maximum security.



Key Features:

• Dual optical detector: The Ajax DualCurtain Outdoor has two independent optical systems that provide a wide motion detection angle up to 30 meters.
• Advanced detection technology: With the Near Area Detection mode enabled, the device can detect motion in close proximity, minimizing “blind spots”.
• Resistance to external influences: Protection against dust, moisture, and extreme temperatures, ensuring reliable operation in various climatic conditions.



Advantages of use:

• 24/7 security: Continuous perimeter guard even when the security system is turned off.
• Intelligent response: The ELSA software prevents false alarms caused by natural disturbances and pets.
• Easy integration: Compatible with other Ajax security system devices.



Ideal for:

• Private residences.
• Commercial properties.
• Areas with high security requirements.



Technical Specifications:

• Power: from pre-installed batteries.
• Communication protocol: Jeweller radio protocol.
• Operating temperatures: from -25°C to +60°C.

Specifications:

• Ajax DualCurtain Outdoor – outdoor motion sensor, wireless bidirectional IR “curtain” motion sensor
• Compatibility: Hub, Hub Plus, Hub2(2G), Hub2(4G), Hub Hybrid(2G), Hub Hybrid(4G)
• Radio signal repeaters: Rex, Rex2
• Radio communication range: up to 1700 m
• Encrypted communication: yes
• Radio frequency hopping: yes (to prevent radio interference and jamming)
• Sensitive elements: 4 × IR sensors
• Motion detection range: 4–15 m for each side (when installed at a height of 0.8 to 1.3 m)
• Viewing angles: horizontal — 4.5°, vertical — 90°
• Motion detection speed: from 0.3 to 2.0 m/s
• Sensitivity: 3 levels
• Animal immunity: height up to 80 cm
• Temperature compensation: effective motion detection from -25°C to +60°C
• Recommendations: the sensor is installed at a height of 0.8–1.3 meters
• Tamper protection: tamper against opening
• Anti-masking system: yes
• Power: 2 CR123A batteries (up to 4 years of autonomous work)
• Dimensions: 174 × 123 × 88 mm
• Weight: 615 g
• Operating temperature range: from −25°C to +60°C
• Permissible humidity: up to 95%
• Protection class: IP54
• Color: white

Package includes:

• DualCurtain Outdoor Jeweller
• SmartBracket mounting panel
• Mounting kit
• 2 CR123A batteries
• Pre-installed.
• Quick start guide



Ajax Security Systems is the choice for those who value reliability, technology, and quality in security systems. Learn more about the product and make your choice for security.

Manufacturer’s website: Ajax Security Systems
